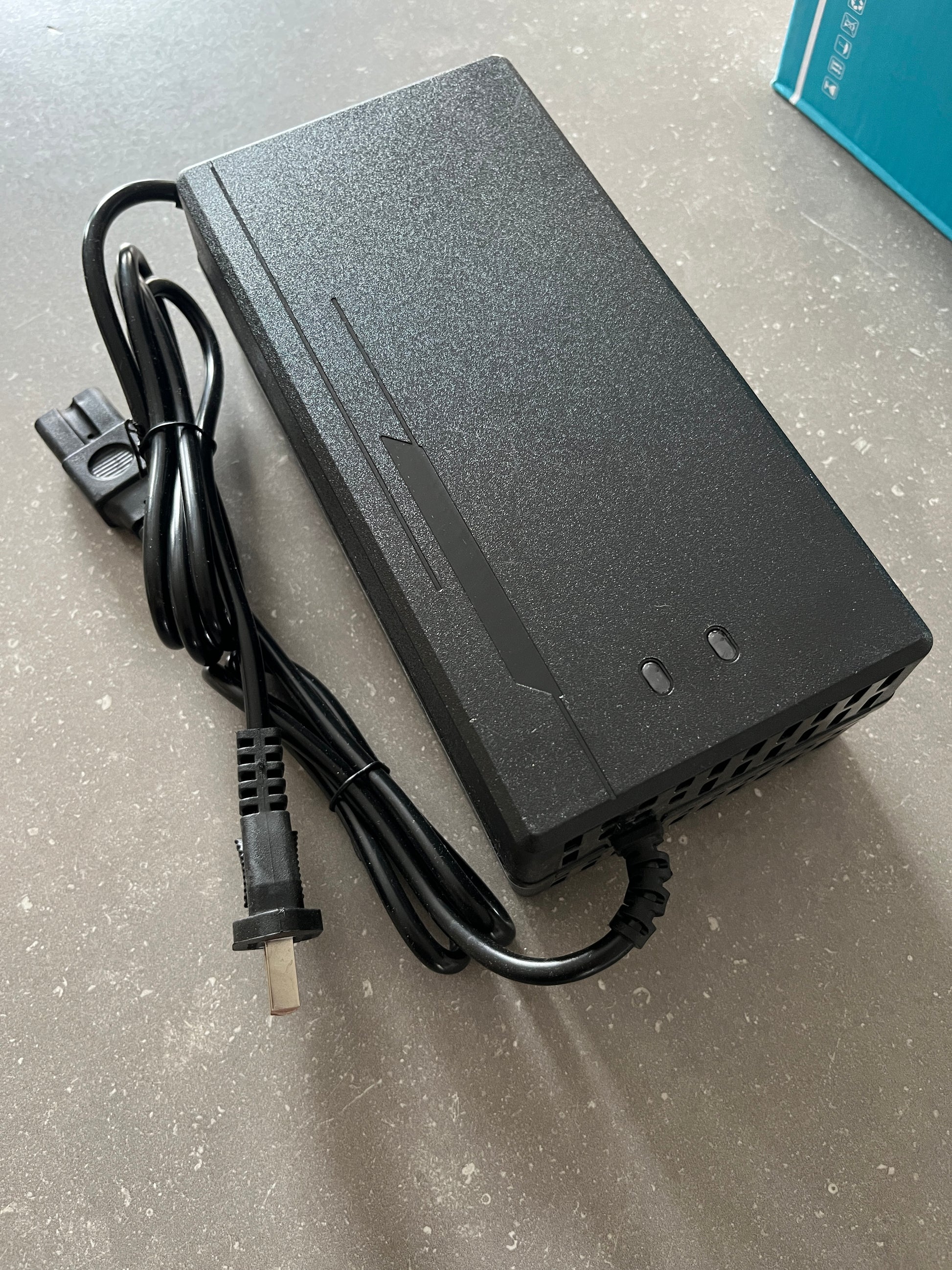

24S Lithium Battery Charger (7 amps)

Charge your high-voltage lithium battery packs efficiently and safely with this high-performance 24S Lithium Battery Charger. Designed for lithium-ion chemistry (Li-ion or LiFePO₄ depending on model), this charger delivers a stable 7A charging current and is optimized for 24-cell series configurations, typically nominal 86.4V (Li-ion) or 76.8V (LiFePO₄).

✅ Specifications:

• Input Voltage: 100–240V AC (50/60Hz)

• Output Voltage:

  • Li-ion (4.2V x 24 cells): 100.8V DC

  • LiFePO₄ (3.65V x 24 cells): 87.6V DC (optional version)

• Charging Current: 7A

• Rated Power Output: ~700W

• Charging Method: CC/CV (Constant Current / Constant Voltage)

• Efficiency: ≥ 90%

• Cooling: Active fan cooling

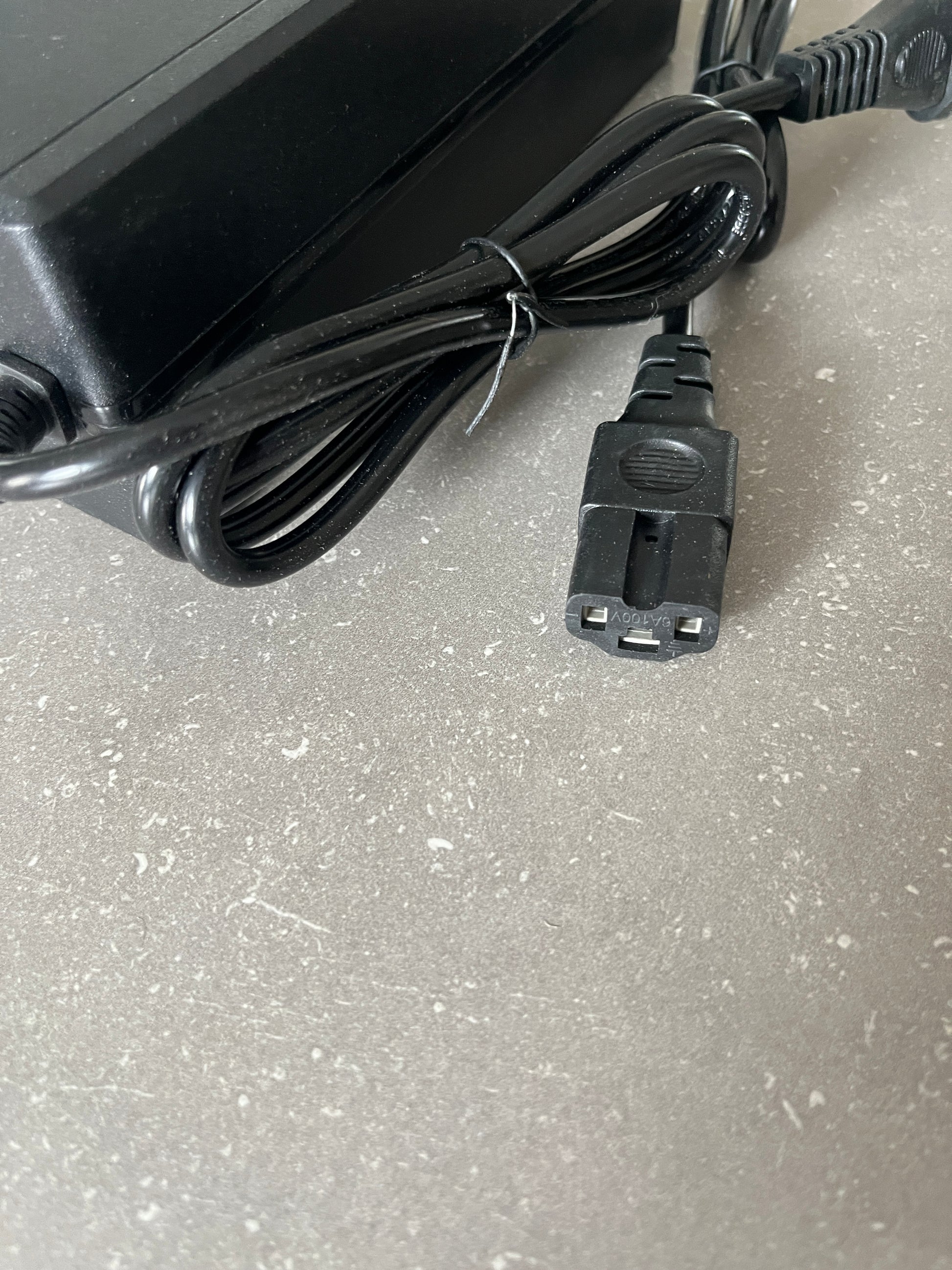

• Connector Type: QS8 / Anderson / XT90 / Custom (specify at purchase)

• Protections:

  • Overvoltage

  • Overcurrent

  • Short-circuit

  • Reverse polarity

  • Over-temperature shutdown

⚡ Features:

• Intelligent BMS compatibility – safely terminates charge when battery is full

• Compact and robust aluminum casing for durability and heat dissipation

• LED indicators for charging status (Red: Charging, Green: Full)

• Quiet fan with thermal regulation

• CE/FCC/RoHS certified for safety and compliance
