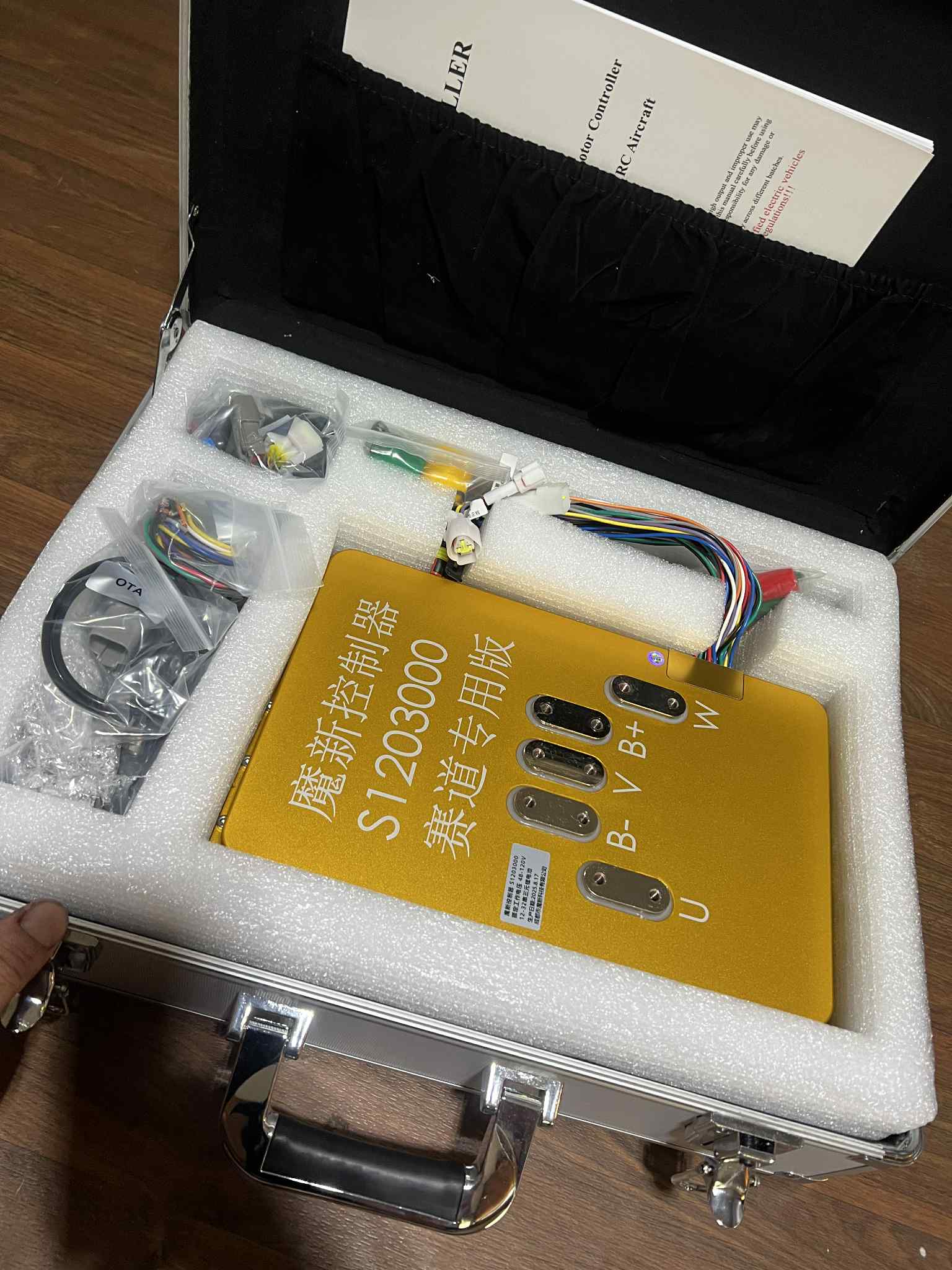

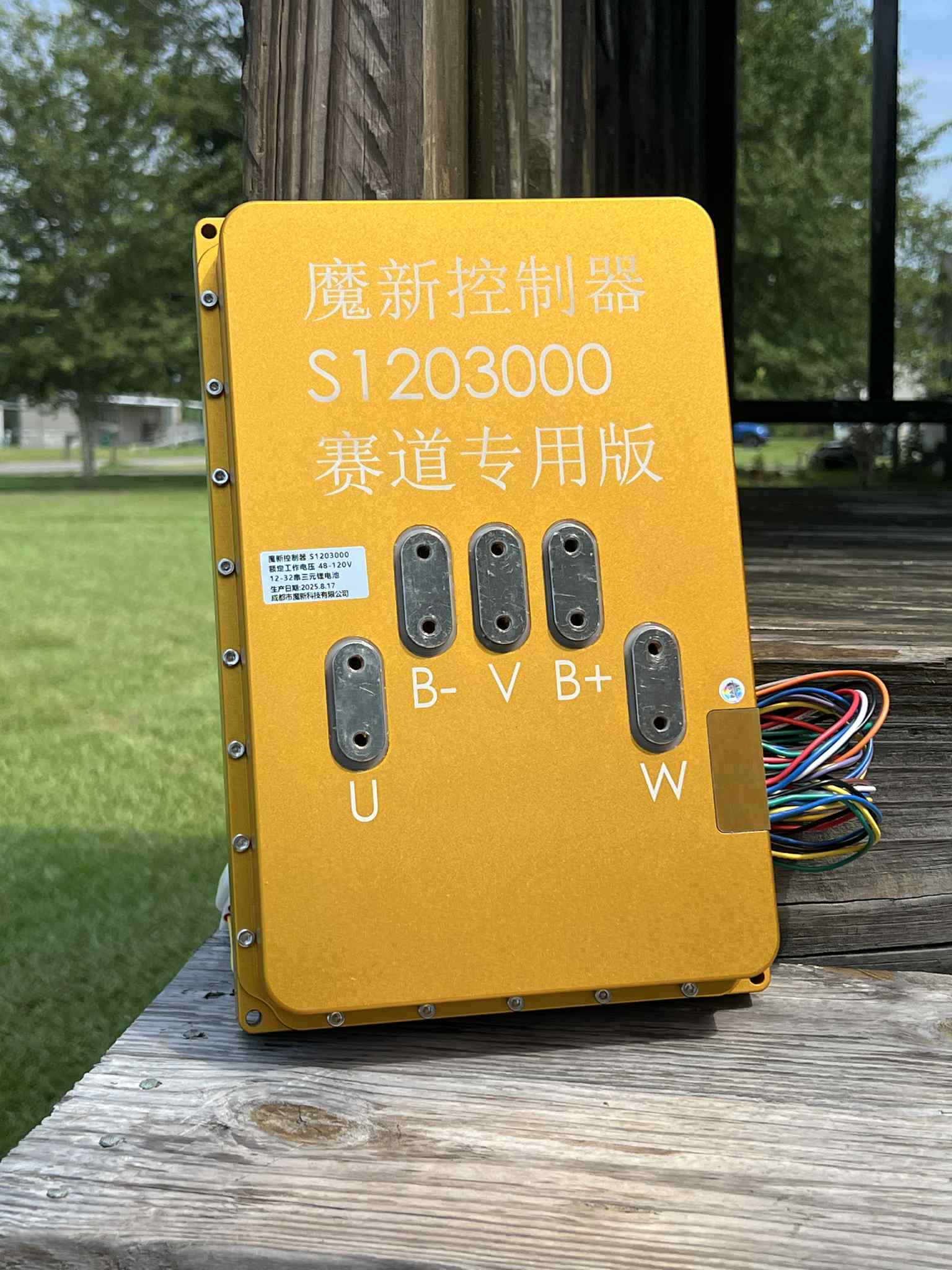

Moxin 1203000

Main Specifications – Moxin S1203000

• Rated Voltage: 48 V – 120 V

• Actual Input Range: 40 V – 137 V

• Rated Power:

  • Water-cooled: 120 kW

  • Air-cooled: 60 kW

• Peak Phase Current: 3000 A

• Continuous Bus Current: 1000 A (with proper heat dissipation)

• Peak Power (10s burst): 120 V × 2100 A = 252 kW

• Weight: ~7 kg

• Dimensions: 213 × 325 × 68 mm

• Power Tubes: 144 TOLL packages

⚡ Performance & Protection

• Short-circuit Current: ±4500 A, reaction time 5 µs

• Max Motor Speed:

  • 1 pole pair: 200,000 RPM

  • 4 pole pairs: 50,000 RPM

  • 16 pole pairs: 12,500 RPM

• Regeneration Methods: throttle recovery / brake power-off recovery / linear electronic braking

• Efficiency:

  • Typical: 99%

  • Always >96% even at peak load

• Controller Response Time: 1000 cycles per second, 1 ms delay

🌊 Durability & Environment

• Waterproofing: fully resistant to 10 m immersion and high-pressure water jets

• Working Temperature: -40 °C to 75 °C (current derates above 75 °C)

🤖 Compatibility & Intelligence

• Accurate motor self-learning algorithm

• One-click automatic parameter identification

👉 In short, the S1203000 is an overkill, track-focused controller, designed for extreme EV builds. With 252 kW burst power and 3000 A peak phase current, it’s in the ultra high-performance class, way beyond what’s normally used for road EVs.
