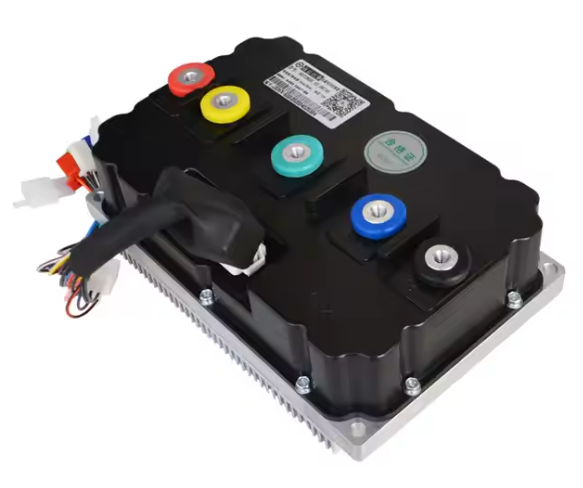

ND961800 FARDRIVER Track version with bluetooth adapter

The FarDriver ND961800 Track Version is a high-performance, programmable sine wave BLDC motor controller designed for electric motorcycles and scooters. It supports motor power outputs ranging from 15,000W to 20,000W and operates at 72V, 84V or 96V. The controller offers regenerative braking and is suitable for both in-wheel and mid-mounted motors.

Key Features:

• High Efficiency and Compact Design: Utilizes high-quality imported MOSFETs with an aluminum substrate, resulting in a compact size and efficient heat dissipation.

• Advanced Programmability: Features self-learning capabilities and can be configured via a visual computer interface or mobile app compatible with Android and Apple devices. Users can adjust parameters such as speed limits, current settings, and throttle response sensitivity.

• Comprehensive Protection Functions: Monitors working voltage, current, temperature, motor status, gear position, accelerator pedal, and brake inputs to ensure safe vehicle operation.

• Regenerative Braking: Supports regenerative braking to enhance energy efficiency and extend battery life. ​

• Flux Weakening Function: Includes a flux weakening feature to improve motor performance at higher speeds.

Specifications:

• Model Number: ND961800 Track Version​

• Compatible Motor Power: 15,000W–20,000W

• Working Voltage: 72V/84V/96V​

• Maximum Bus Current: 1,800A​

• Maximum Phase Current: 1350A​

• Dimensions: 238mm × 155mm × 88mm​

• Weight: Approximately 5 kg​

The ND961800 Track Version is engineered to deliver robust performance and reliability for high-speed electric motorcycles and scooters, making it an ideal choice for racing and high-performance applications.
